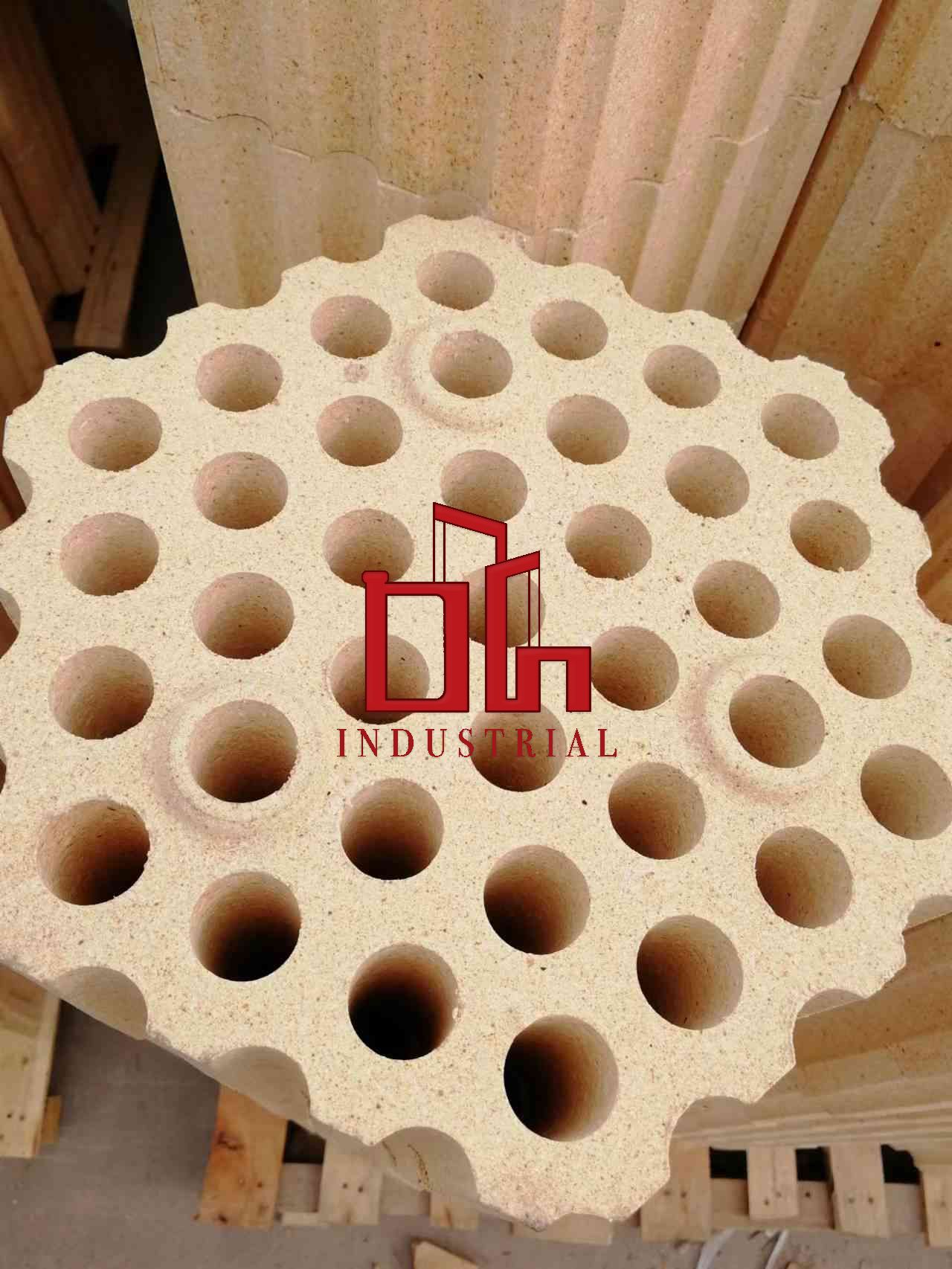

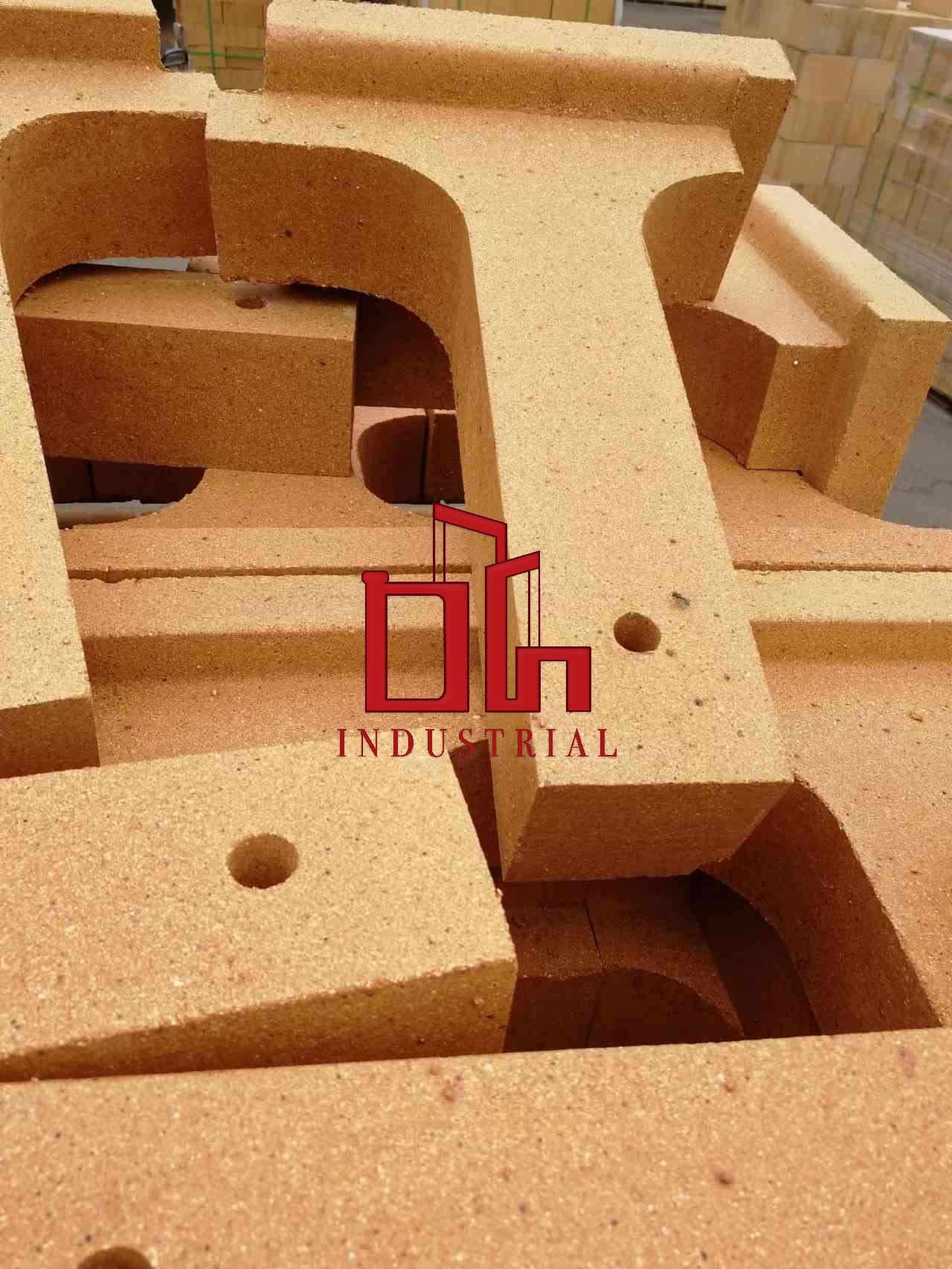

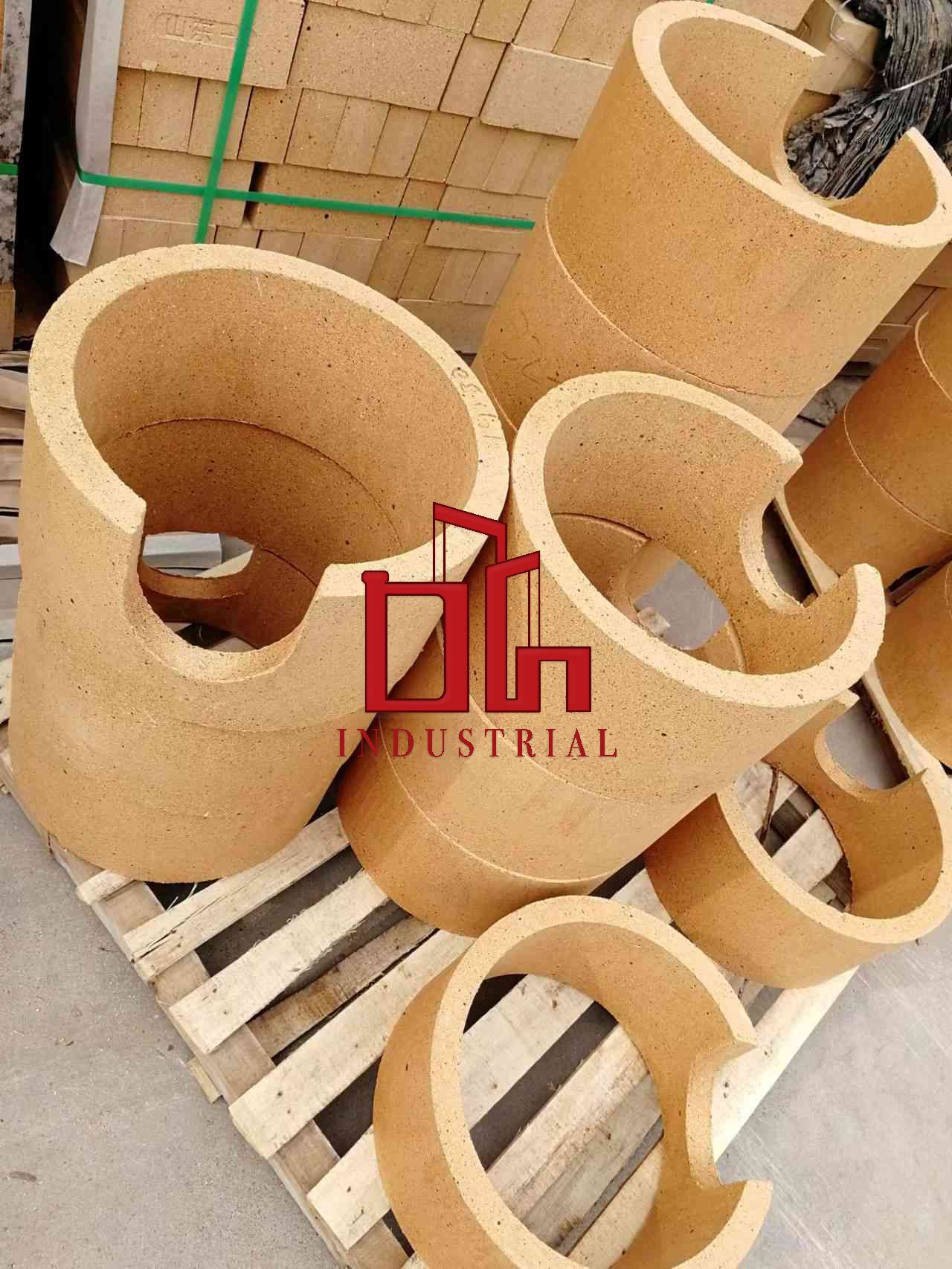

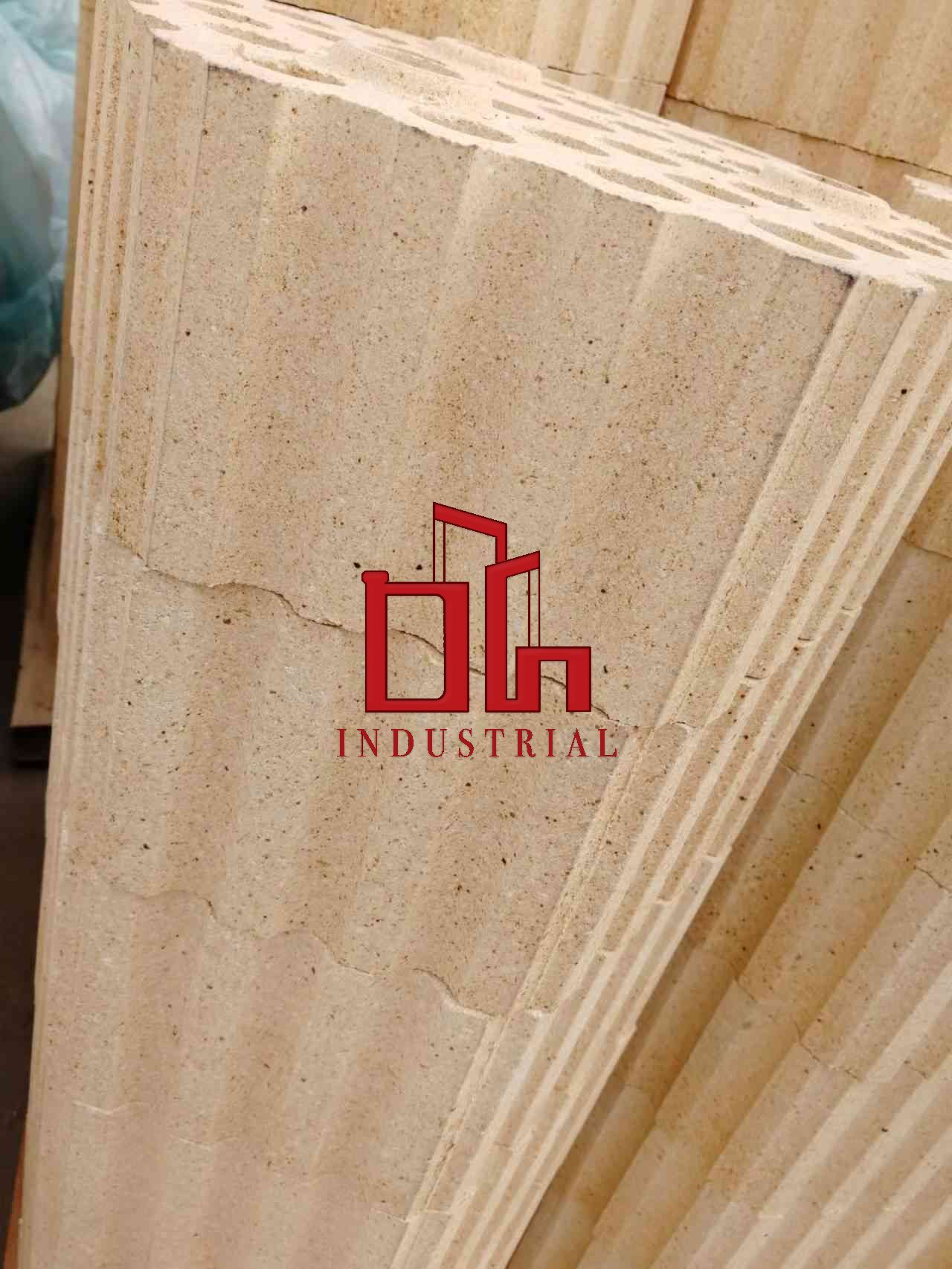

Baffle Fire Brick

Baffle bricks are a type of refractory brick that are used in various industrial heating equipment, particularly in furnaces and kilns. They are typically installed as baffles or partitions within the equipment to control the flow and direction of heat, combustion gases, and materials being processed.

Baffle bricks are designed to withstand high temperatures, thermal cycling, and chemical attacks. They are usually made from high-quality fireclay or high alumina materials, which provide good thermal insulation, high refractoriness, and resistance to abrasion and corrosion.

  • Payment :

    In Advance
  • Product Origin :

    China
  • Shipping Port :

    Shanghai Port
  • Lead Time :

    15 Working days

Product parameters:

Index Type DBZ-60 DBZ-70 DBZ-75 DBZ-80 DBZ-85
 - Material Alumina mulite Alumina mulite Alumina mulite Capacitance corundum Capacitance corundum
Chemical compstion(%) Al2O3≥ 60 70 75 80 85
Bulk density(g/cm3) 1500℃X3h≥ 2.5 2.5 2.55 2.6 2.65
Compsssion srength  (MPa) 1500℃X3h≥ 70 80 90 100 110
Modulus of rupture (MPa) 1500℃X3h≥ 8 8.5 9.5 11 12
Permanent linear change(%) 1500℃X3h 0.6 0.5 10.4 士0.3 士0.2
Max,service temperature ℃   1450 1550 1550 1600 1650



Magnesia Chromite Brick B620
