0-1100KV AC rod-shaped Post Porcelain Insulators and Suspension/post Composite Insulators

AC rod-shaped post porcelain insulators and suspension/post composite insulators are two types of insulators used in electrical power transmission and distribution systems.

1. AC Rod-shaped Post Porcelain Insulators:

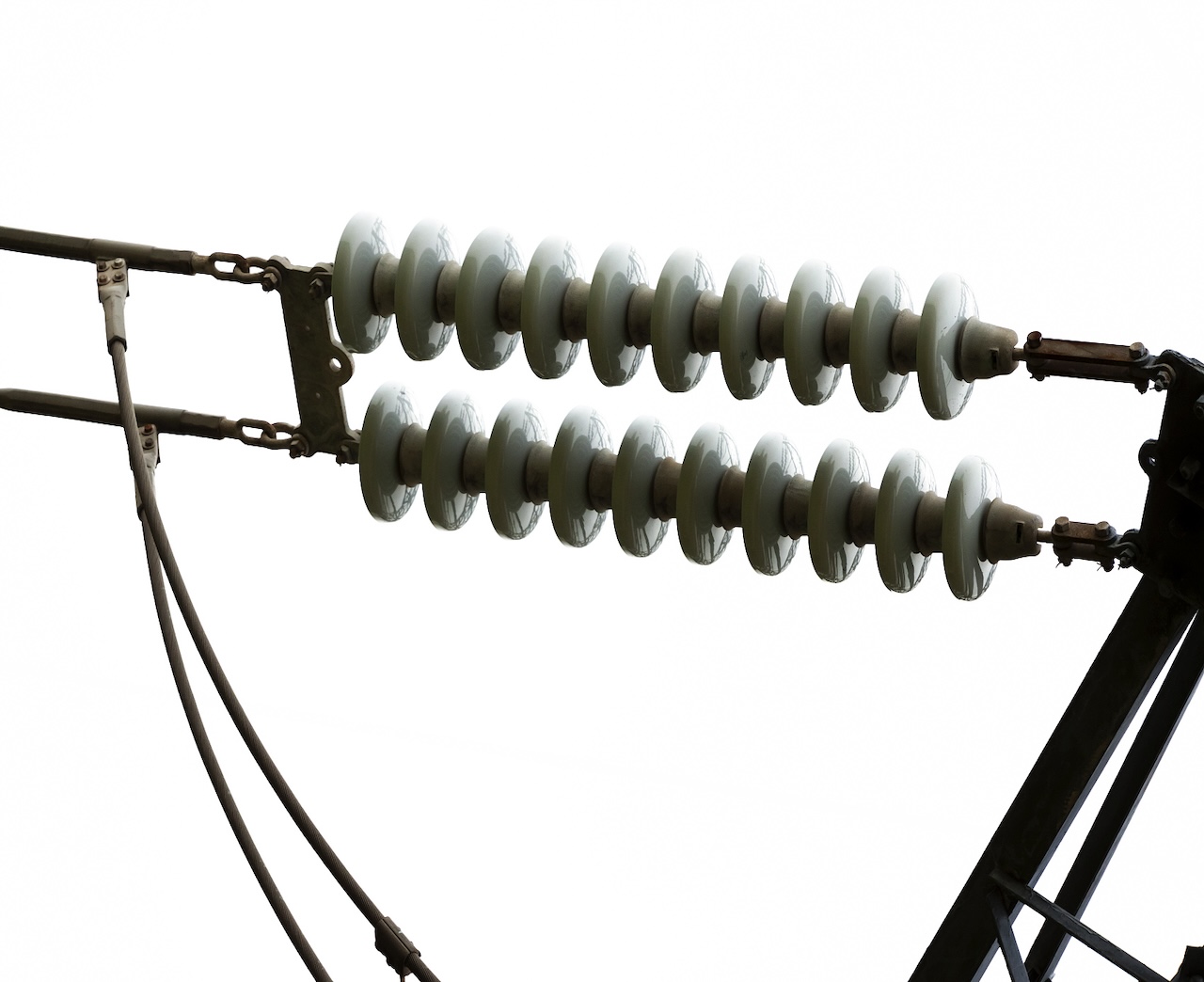

AC rod-shaped post porcelain insulators, also known as disc insulators, are made of ceramic (porcelain) material and are widely used in overhead power distribution lines and substation applications. They consist of a series of ceramic discs stacked on top of each other and are mounted vertically on support structures (such as metal or concrete poles) using a metal or composite rod.

Key features of AC rod-shaped post porcelain insulators include:

- High mechanical strength to withstand mechanical loads and environmental stresses.

- Excellent electrical insulation properties to isolate conductors from the grounding structure.

- Good resistance to weather, UV radiation, pollution, and aging.

- Rod shape design provides a large creepage distance, preventing flashovers caused by pollution or moisture.

- Typically used for lower voltage applications, such as up to 500kV.

2. Suspension/Post Composite Insulators:

Suspension/post composite insulators are a type of insulator that combines a fiberglass-reinforced polymer (FRP) or silicone rubber housing with metal end fittings. They are designed to provide high mechanical strength, electrical insulation, and resistance to various environmental conditions. These insulators are suitable for both overhead transmission and distribution lines.

Key features of suspension/post composite insulators include:

- Lightweight design, which reduces the load on support structures and simplifies installation.

- High mechanical strength and durability, enabling them to withstand mechanical loads, such as conductor tension, wind, and ice.

- Excellent electrical insulation properties and low electrical losses.

- Good resistance to UV radiation, pollution, and aging.

- Enhanced tolerance to dynamic stresses, such as vibration and shock.

- Can be used for both higher voltage applications, such as up to 1000kV, and lower voltage applications.

Composite insulators offer several advantages over porcelain insulators, including lower weight, better pollution performance, and higher mechanical strength. They are commonly used in areas with high pollution levels or where weight reduction is critical.

In summary, AC rod-shaped post porcelain insulators and suspension/post composite insulators are two types of insulators used in electrical power systems. The choice between them depends on various factors such as voltage level, pollution levels, mechanical requirements, and specific application needs.
